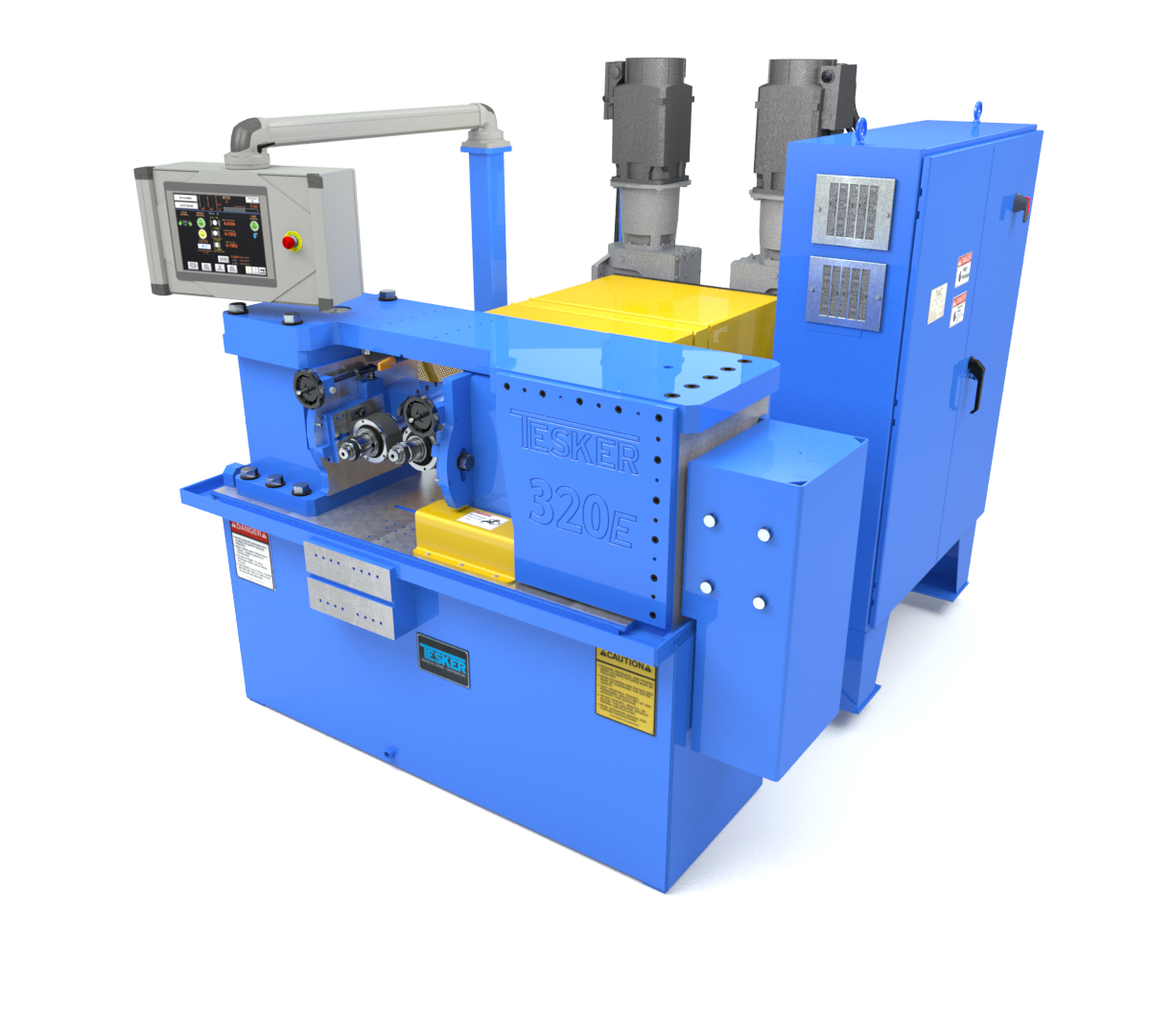

Tesker Model 320E 2-Die

A Popular System for Medium-Sized Rolling

With spindles that tilt either direction, as well as a space-saving footprint, it's easy to see why so many manufacturers love the Tesker Model 320 2-Die Thread Rolling Machine.

Tesker Model 320E 2-Die Machine Specifications:
Type Infeed & Thrufeed
Capacity 3"
Rolling Pressure Adjustable to 80,000 lbs.
Spindle Drive 40 HP on variable speed models, 30 HP on 4-speed models
Hydraulic 5 HP, Capacity 50 Gal
Coolant 1/4 HP, Capacity 80 Gal
Maximum Diameter 8"
Maximum Face Width 5-1/2"
Spindle Size 2-1/2" (other sizes available)
Spindle Speeds Variable or 4-Speed manual
Spindle RPM 20 - 120 (other speeds available)
Floor Dimensions
Width 76"
Length 96"
Height 52"
Weight 10,000 lbs.
All models wired to NFPA 79 standards for operation on 480 volt, 3 phase, 60 hz. Other voltages available at additional cost.
Specifications subject to change without notice.
Please be advised that fixturing and additional guards may be needed, depending on job being rolled. Tesker Manufacturing Corporation assumes no liability for fixturing or guards designed, manufactured or installed by anyone other than Tesker Manufacturing Corporation.

Tesker Model 320E 2-Die Standard Equipment

+Hydraulic Slow Release Valve

+Servo Drive

+Spindle RPM Tachometer

+Versa III Auto Oil Lubrication System

Tesker Model 320E 2-Die Available Options

+Thread Length Control Limit Switch

+Radial Die Line-Up Coupling

+Front "L" Support including Front Bar Feed Fixture

+Spring Loaded Rear Stop Assembly with Base

+Part Hold Down with Spring Loaded Stop

+Tie Arm Hydraulic Stop Block Assembly

+Enclosed Toe-in Indicator

+Hydraulic Slow Release Valve

+Outboard Roller Supports (1set/2pcs)

+Center Stands (1 set/2 pcs)

+Center Support Tube (1 needed for each size)

+Upper Support Holder

+Feeding and Receiving Fixtures
